Whether you're choosing intake panels, diffusion filters, overspray capture media, specialized collection bags, or products compliant with NESHAP standards, you can trust that you're investing in premium filtration solutions.

Paint Filtration

Request quote
Green textured paper background with a watercolor-like appearance.

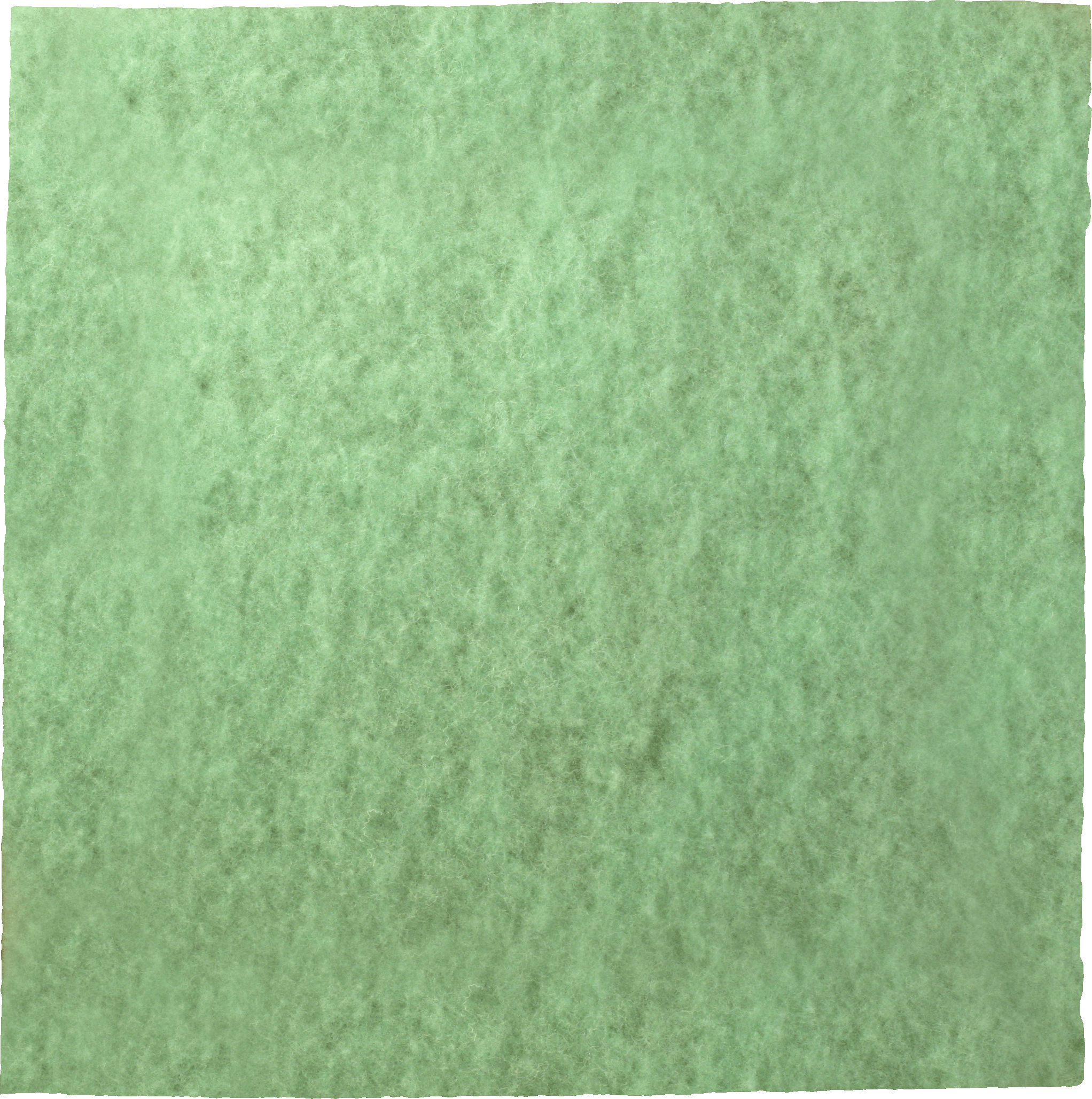

Paint Arrestor

  • Fiberglass arrestor available in pads and rolls

  • Manufactured in a quality-controlled facility

  • Average efficiency on paint: 99.3%

  • Available in a wide range of standard and special sizes

  • Initial resistance: 0.02" W.G. @ 148 FPM

Close-up of sandy textured surface with small, wave-like patterns.

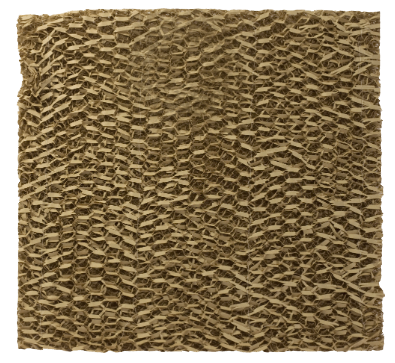

Paint Collector

  • Layers of slit and expanded kraft with multistage designed baffle openings

  • Final layer of non-woven polyester in Supra® products for increased efficiency and longer filter service life

  • Extended service life for fewer change-outs

  • Ease of handling, installation, and disposal

  • Available in both flame retardant and non–flame retardant versions

An empty disposable diaper's interior structure showing absorbent layers and leak guards.

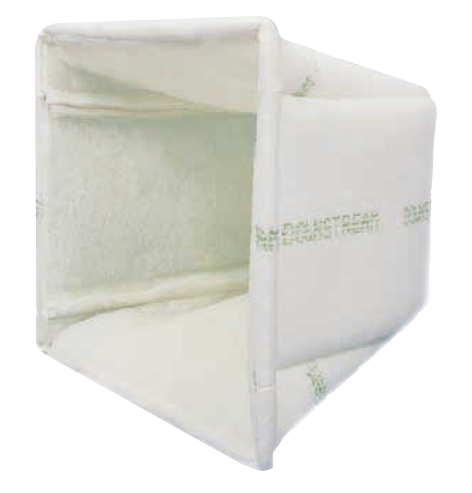

Cube Filters

  • 29% post-consumer recycled content

  • Depth-loading media = longer service life

  • Extended surface area = energy savings

  • Trapezoid shape = lower pressure drop

  • No cardboard = moisture resistant

  • Mold resistant = reduced microbials

  • Self-sealing = reduced bypass of unfiltered air

Stack of three blank white rectangular paper sheets.

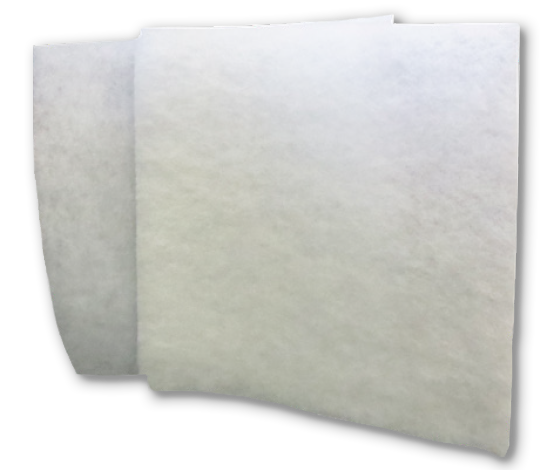

Overspray Arrestor

  • Synthetic arrestor available in pads and rolls

  • Manufactured in a quality-controlled facility

  • Average paint arrestance efficiency: 99.5%

  • Available in a wide range of standard and special sizes

  • Initial resistance: 0.08” W.G. @ 148 FPM

Three teal-colored three-ring binders standing upright.

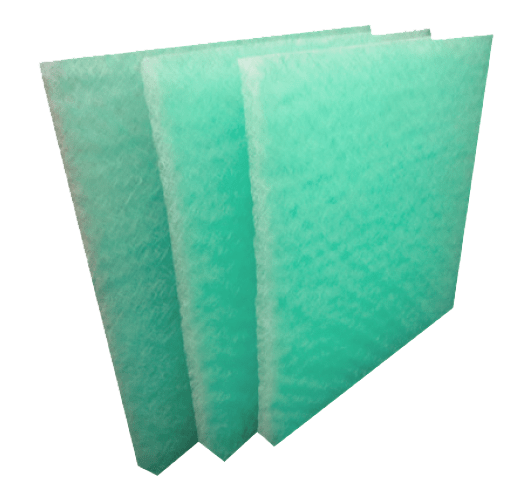

Columbus SL-100PSG

  • Paint overspray arrestor

  • 1″ nominal thickness

  • Average efficiency on paint: 98%

  • Available in a wide range of sizes

A large roll of white thermal paper with smaller folded and unfolded sheets of the same paper in front of it. The paper has blue text and symbols printed on it.

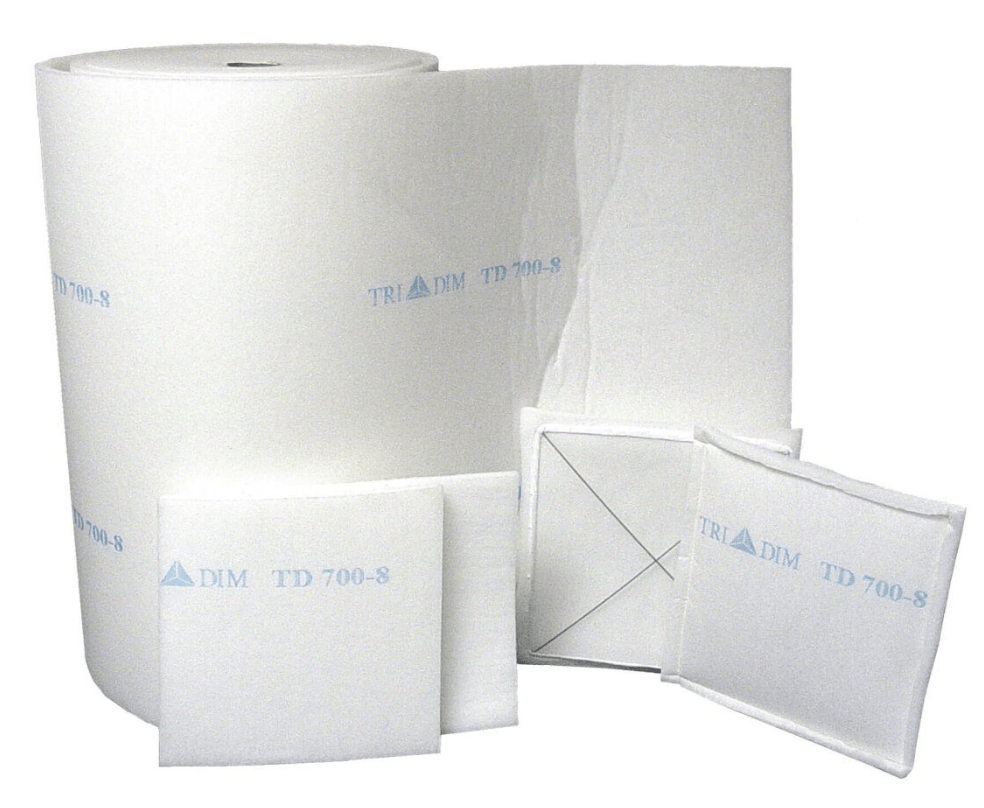

TD 700-8 Diffusion Media and Panels

  • Minimum efficiency of 99% on particles larger than 5 microns

  • Available in rolls, pads, panels, and links

  • 0.20" resistance at rated airflow

  • 212°F temperature rating

  • 1" nominal thickness

Two white air filters with blue text, labeled TRIDIM TD 800, placed side by side.

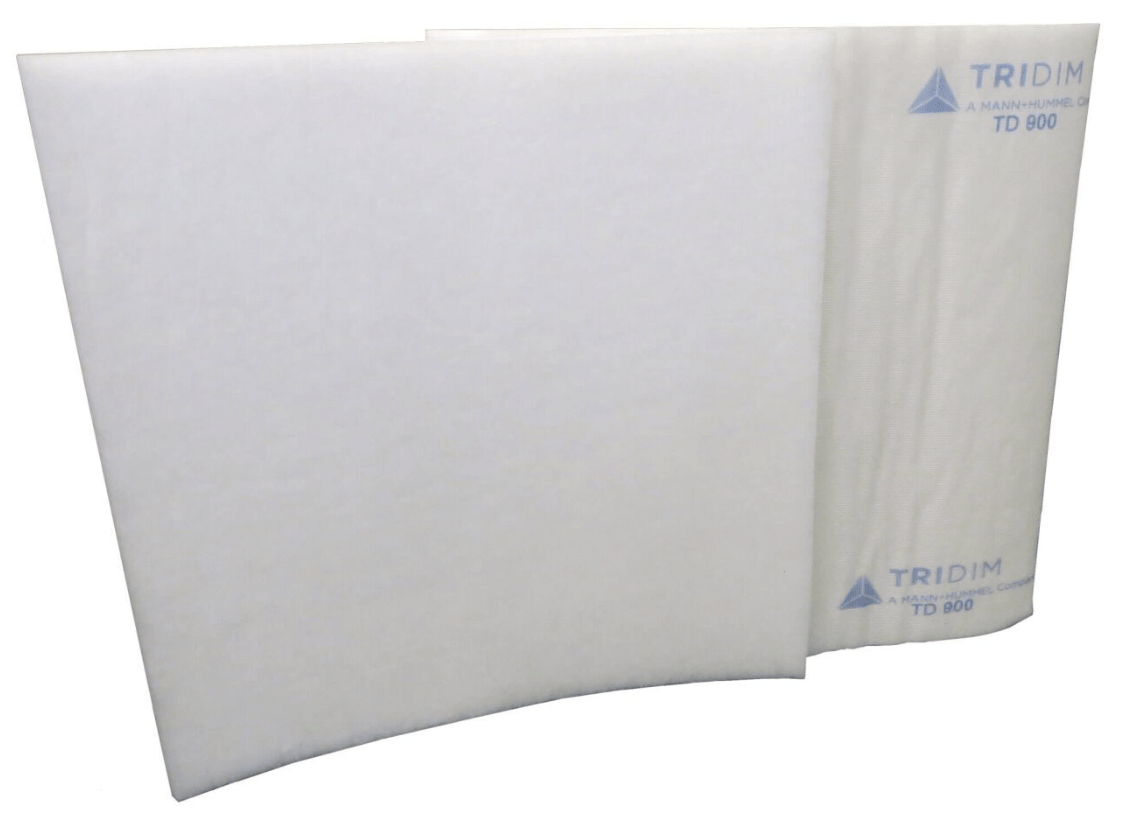

TD-800 Diffusion Media

  • For use in laminar flow spray booths

  • Available in bulk rolls or media; standard and special sizes available

  • 1" nominal thickness

  • Rated temperature up to 212 °F

  • MERV 11

  • 99% average efficiency over 5 micron

A large rectangular HEPA air filter with a metal frame and pleated filter material.

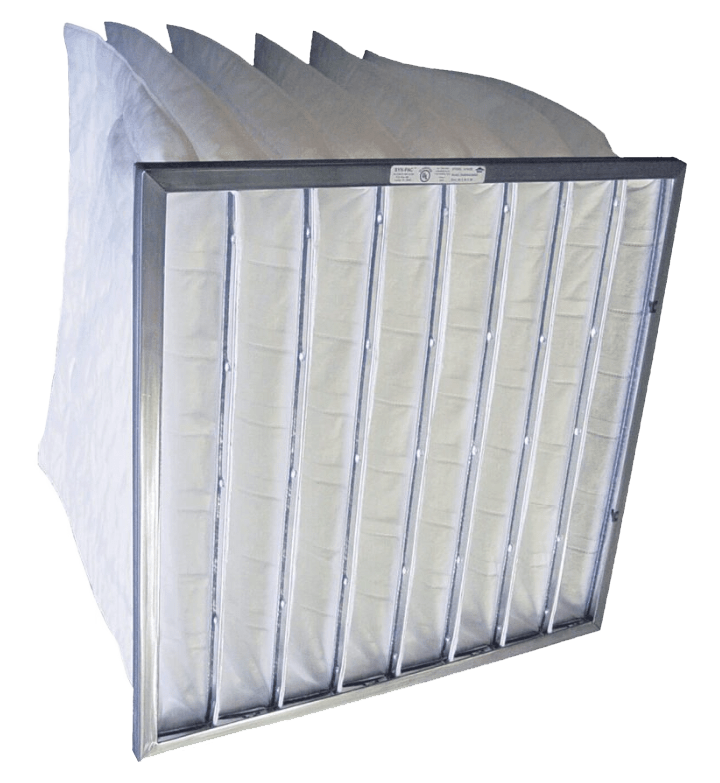

SYN-Pac 319

  • Approved for use in 319 3-stage chromate paint systems

  • Quality-controlled manufacturing facility

  • Initial efficiency on chromate paint: 99.93%

  • Available in a wide range of standard and special sizes

  • Initial resistance: 0.17" W.G. @ 120 FPM

Stacked white foam bed padding with a separate piece standing upright.

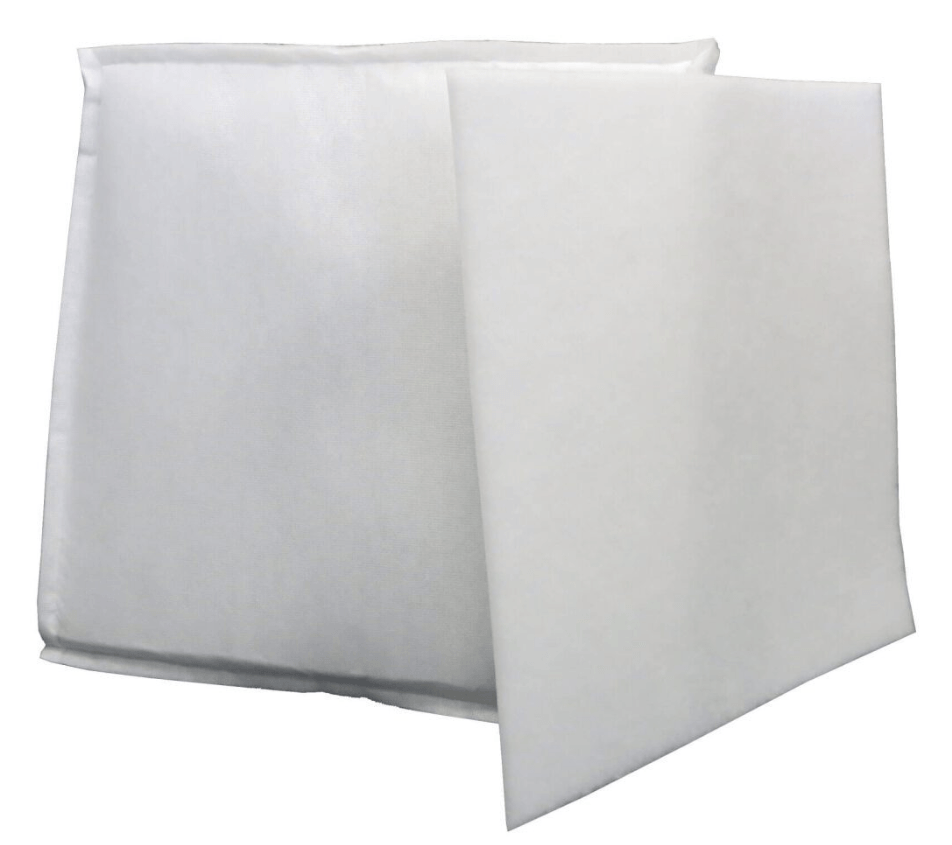

TR-1 Diffusion Media and Panels

  • For use in laminar flow spray booths

  • Available in bulk rolls, media, pads, panels, or links

  • Standard and special sizes available

  • Panel thickness: 1 inch

  • Average efficiency (particles >10 micron): 95%

  • Initial resistance: 0.09" W.G. @ 100 FPM

.

NAFA Best Practices Guideline

Cover of a guide titled 'Best Practice Guidelines: Filtration for Spray Finishing Particulate' by NAFA, with an image of a person in protective gear spray painting a vehicle in a workshop.

Filtration for Spray Finishing Particulate

This best-recommended practice establishes air filtration and spray collection guidelines for the removal of airborne contaminants for the protection of the employees, equipment, and environment in commercial and industrial spray booths.

Download PDF
